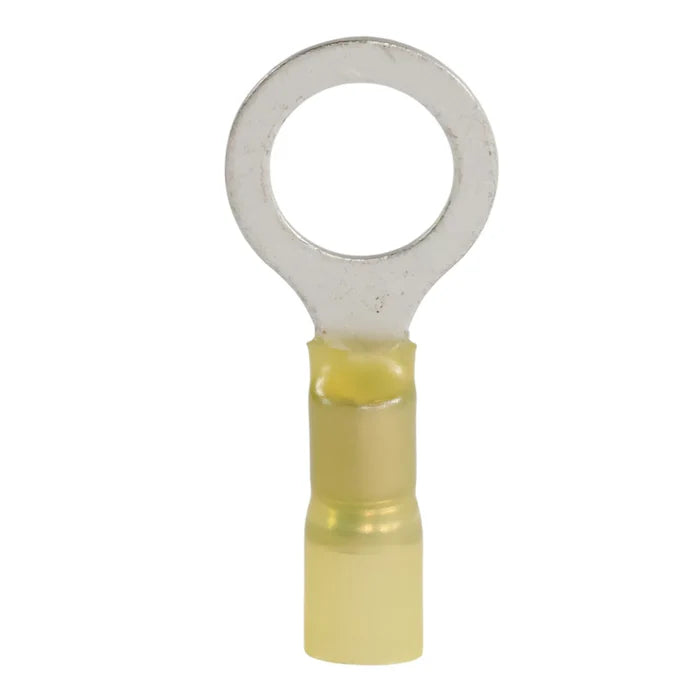

x📝 Yellow Heat Shrink Ring Terminal M12 (100 Pack)
These yellow heat shrink ring terminals are designed for heavy-duty, sealed electrical connections in campervan, caravan, marine, automotive, and off-grid 12v–48v systems.
Built to suit 4–6mm² cable (AWG 12–10) with an M12 ring size to fit 12mm studs/bolts, they provide a secure crimp connection rated up to 48A.
Once heated, the insulation shrinks tightly around the cable, forming a protective seal that improves strain relief and protects against moisture, dust, corrosion, and vibration — ideal for higher-current DC circuits in mobile environments.
<>⭐ Essential Benefits
• Heat shrink insulation – creates a sealed, moisture-resistant connection.
• 48A max current rating – suitable for higher-current DC circuits.
• 105°C temperature rating – built for demanding installations.
• Heavy-duty cable capacity – suits 4–6mm² wiring.
• Secure crimp connection – ensures long-term electrical reliability.
⚙️ Functionality
After crimping with a suitable ratchet crimp tool, apply heat using a heat gun to activate the insulation. The sleeve shrinks tightly around the cable insulation, forming a protective barrier that strengthens the joint and improves durability.
These are ideal for battery feeds, fuse holders, distribution blocks, solar wiring, and higher-load accessory circuits.
<>🔌 Compatibility
• Suits 4–6mm² cable.
• AWG 12–10.
• Fits M12 studs/bolts.
• Suitable for 12v, 24v and 48v DC systems.
• Rated up to 48A max current.
🧰 Installation Difficulty
🟢 1/5 (Easy)
Requires a suitable ratchet crimp tool and heat gun for proper installation.
🔍 Features
• Yellow heat shrink insulation.
• 105°C temperature rating.
• Sealed moisture-resistant design.
• Designed for DC automotive, marine, and off-grid systems.
• Supplied in bulk 100 pack.
📊 Specifications
| Specification | Value |
|---|---|
| Terminal Type | Heat shrink ring terminal |
| Stud Size | M12 |
| Cable Size | 4–6mm² |
| AWG | 12–10 |
| Maximum Current | 48A |
| Temperature Rating | 105°C |
| Insulation Type | Heat shrink |
| Pack Size | 100 Pack |
| Voltage Suitability | 12v–48v DC systems |
📘 DC Crimp Terminal Insulation Comparison
| Material | Pros | Typical Use Case |
|---|---|---|
| Vinyl | Low cost, Easy to crimp, Suitable for light-duty circuits | Interior dry areas, Basic accessory wiring, Lighting circuits, Low-current applications, Budget-focused builds |
| Nylon | Tougher insulation, Higher temperature resistance, Flexible, Better vibration resistance, Improved strain relief | Campervan 12v systems, Fuse blocks, DC-DC chargers, Solar controllers, General distribution wiring |
| Heat Shrink | Sealed insulation when heated, Excellent strain relief, High vibration resistance, Corrosion protection, Professional finish | Battery cables, Inverter feeds, Solar inputs, External wiring runs, Under-chassis wiring, Marine or damp environments |
📦 What’s Included
• 100 × Yellow heat shrink ring terminals M12
<>🙌 Why Choose This Product?
Heat shrink terminals are ideal for higher-current applications where sealing, vibration resistance, and long-term reliability are critical in mobile and off-grid builds.
<>🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid electrical accessories.
