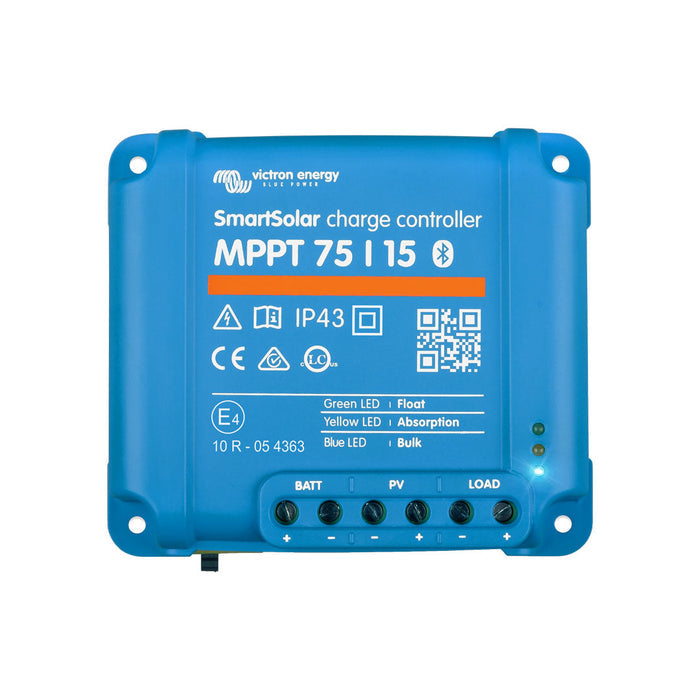

x📝 Victron SmartSolar MPPT 75/15 Bluetooth 12V/24V
The Victron SmartSolar MPPT 75/15 is a powerful and intelligent solar charge controller designed to maximise solar energy yield for off-grid, caravan, marine, and RV systems. Using ultra-fast Maximum Power Point Tracking (MPPT) technology, it ensures optimal performance even in partially shaded or low-light conditions. With built-in Bluetooth Smart, the 75/15 allows you to monitor, configure, and optimise your solar setup directly from your phone using the VictronConnect app.
<>⭐ ESSENTIAL BENEFITS
• Ultra-fast MPPT technology – increases solar energy harvest by up to 30% over PWM and up to 10% over slower MPPT controllers.

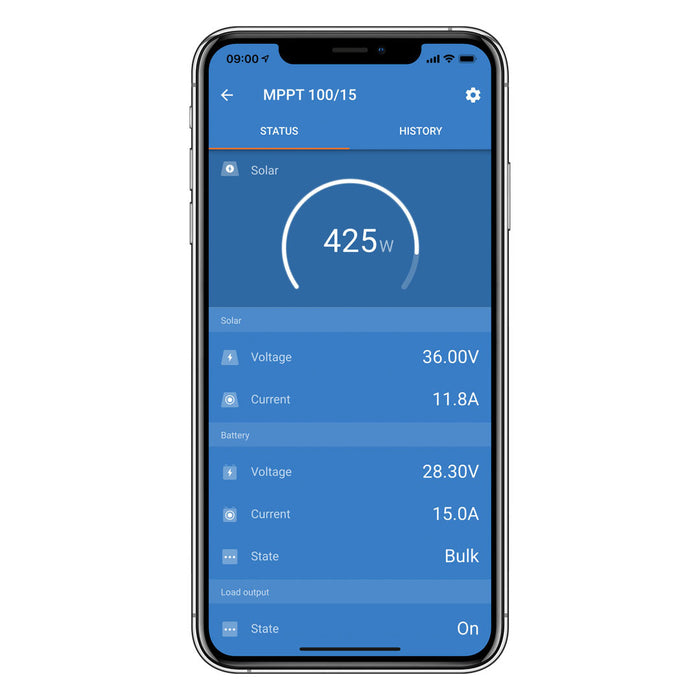

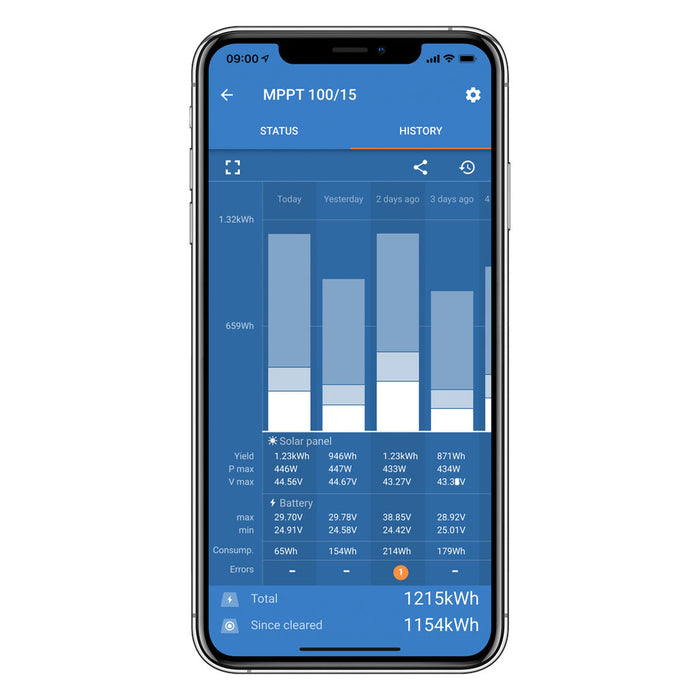

• Bluetooth Smart built-in – enables real-time configuration, monitoring, and firmware updates via VictronConnect.
• Remote monitoring and control – integrate with Victron VRM Portal for global system access through a GX device.
• Battery Life algorithm – intelligently manages charge cycles to extend battery life by preventing over-discharge and ensuring full recharge cycles.
• Load output management – disconnects loads when voltage drops too low to protect your battery from deep discharge.
• Zero-volt recovery – automatically restarts charging even from fully discharged batteries, including Li-ion systems with disconnect protection.
• Intelligent protection – safeguards against short-circuit, reverse polarity, and over-temperature conditions.
⚙️ HOW IT WORKS / FUNCTIONALITY
The SmartSolar MPPT 75/15 constantly monitors PV panel output to track the Maximum Power Point, ensuring maximum efficiency under changing sunlight conditions. The integrated Battery Life management system adjusts load cut-off levels dynamically, encouraging full recharge cycles to maintain optimal battery health. Control and data access are available via Bluetooth or VE.Direct, giving you complete visibility of your system’s performance.
<>🔌 COMPATIBILITY
• Suitable for 12v and 24v battery systems (auto-select).
• Compatible with AGM, GEL, Lead-acid, and LiFePO4 batteries.
• Integrates with Victron GX devices, Smart Battery Sense, and BMV-712 monitors for enhanced data sharing.
• Ideal for caravans, RVs, boats, tiny homes, and small off-grid setups.
🧰 INSTALLATION DIFFICULTY
🟡 Moderate (4/5) – requires correct wiring, fusing, and system configuration. Professional installation recommended for complex setups.
<>🔍 FEATURES
• Bluetooth Smart connectivity – wireless setup, monitoring, and updates via VictronConnect.
• VE.Direct communication port – connect to GX devices or PC for wired monitoring.
• Programmable charging algorithm – suitable for all major battery types.
• Day/night timing & dimming options – adjustable through Victron software.
• Internal temperature sensor – automatically adjusts charge voltage for temperature compensation.
• Optional external sensing – works with Smart Battery Sense or BMV-712 Smart Monitor for precision battery data.
• Fully discharged battery recovery – reactivates charging even from zero volts.
• Short-circuit proof load output – safe and reliable operation under all conditions.
📊 SPECIFICATIONS TABLE
| Specification | Value |
|---|---|
| Brand | Victron Energy |
| Model | SmartSolar MPPT 75/15 |
| Battery Voltage | 12V / 24V (auto-select) |
| Rated Charge Current | 15A |
| Max PV Open Circuit Voltage | 75V |
| Max PV Input Power | 220W (12V) / 440W (24V) |
| Communication | Bluetooth Smart / VE.Direct |
| Load Output | Yes (programmable) |
| Temperature Compensation | Internal sensor |
| Protection | Reverse polarity / Short circuit / Over-temp / Overload |
| Enclosure Rating | IP43 (electronics) / IP22 (connections) |
| Operating Temperature | -30°C to +60°C |
| Dimensions | 100 × 113 × 40 mm |
| Weight | 0.6kg |
📦 WHAT’S INCLUDED

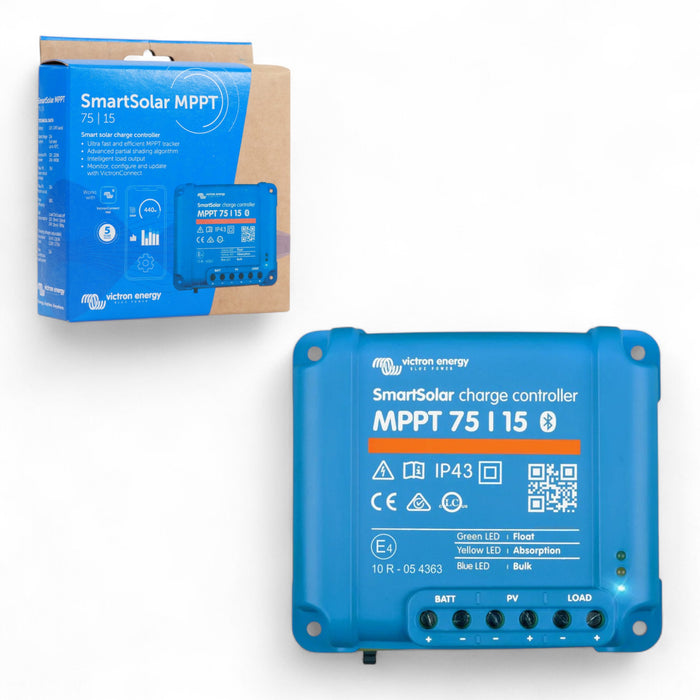

• 1 × Victron SmartSolar MPPT 75/15 Charge Controller
• Built-in Bluetooth module
• User manual
Data sheet here
Manual here
