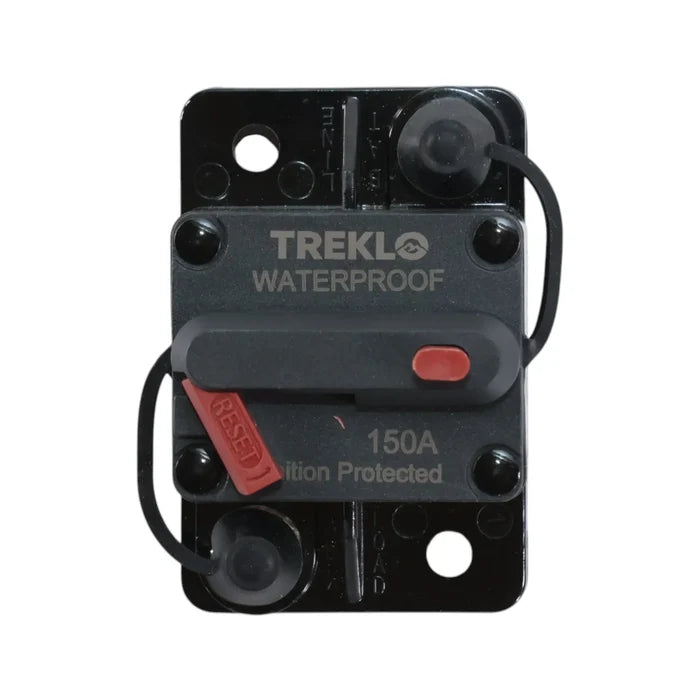

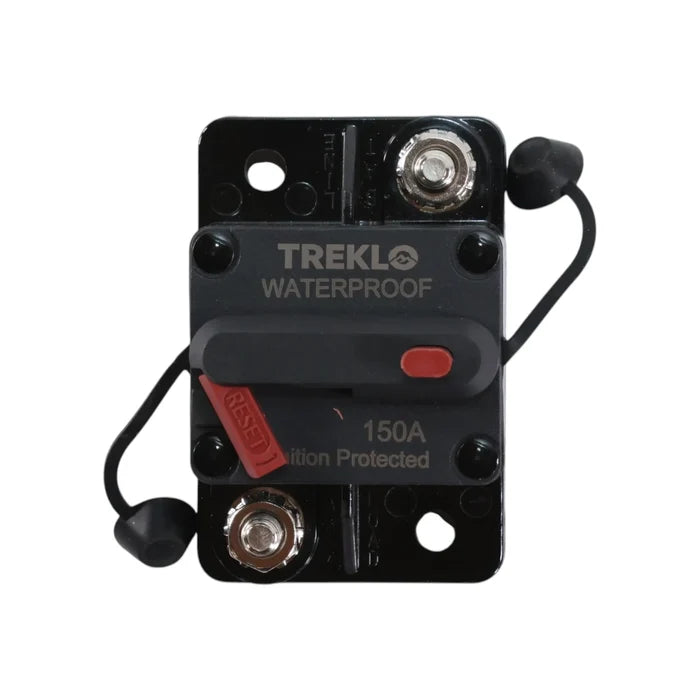

xπ Treklo Heavy Duty Premium Circuit Breaker β 150A
Introducing the ultimate heavy duty circuit breaker for unrivalled power protection! The Heavy Duty Premium 150A Circuit Breaker offers top-tier performance, reliability, and safety across 12vβ48v DC systems. Built for demanding automotive, marine, and industrial environments, this ignition-protected breaker combines superior current protection with exceptional durability and reset functionality.
Engineered for consistent performance, it meets rigorous international standards, providing long-term reliability in all conditions.
β High-Quality Performance
β’ Heavy duty construction β ensures reliable protection for high-current applications.
β’ Wide voltage compatibility β rated up to 48v DC for 12v, 24v, 36v, and 48v systems.
β’ Exceptional temperature resistance β maintains performance in extreme conditions.
β’ Ignition protected β safe for enclosed or marine use.
β’ Manual resettable β simple push-button operation for quick recovery.
β’ Dual-purpose functionality β use as both a breaker and isolation switch.
β’ Surface mount housing β easy to install and vibration resistant.
β’ Available in 30β150A models β choose the right rating for your setup.
βοΈ Key Features
β’ Standards compliant β meets SAE J553, SAE J1625, and ABYC-E11 requirements.
β’ IP67 waterproof protection β dustproof and waterproof design ensures durability.
β’ Ignition protected β certified to SAE J1171 and UL1500 standards for safety.
π¬ Testing Performed
β’ 200% current inspection β every unit tested for consistent electrical performance.
β’ Corrosion resistance β passes 96-hour salt-spray test.
β’ High torque tolerance β withstands over 10kgΒ·f torque.
β’ Durability tested β exceeds 10,000 mechanical cycles for longevity.
π§Ύ Safety Certification
β’ Electrical certification: UL approved.
β’ Environmental compliance: RoHS standard.
π Versatile and Reliable
β’ Suitable for cars, trucks, caravans, RVs, construction vehicles, and marine systems.
β’ Designed for agricultural, off-grid, and heavy-equipment applications.
β‘ Optional Power Range
β’ Available in current ratings from 30Aβ150A.
β’ Maximum capacity as specified on each unit.
π§° Installation Difficulty
π’ 1/5 (Easy) β simple surface mount installation with manual reset.
π Specifications
| Specification | Detail |
|---|---|
| Current Rating | 150A (optional 30Aβ150A available) |
| Voltage Range | 12vβ48v DC |
| Type | Manual Reset Circuit Breaker |
| Mounting Type | Surface Mount |
| Ingress Protection | IP67 |
| Protection | Ignition Protected |
| Certifications | UL, SAE J553, J1625, J1171, ABYC-E11, RoHS |
| Material | Copper Internals |
| Applications | Automotive, Marine, Agricultural, Caravan, Off-grid |
π¦ Whatβs Included
β’ 1 Γ Heavy Duty Premium 150A Circuit Breaker with Manual Reset
