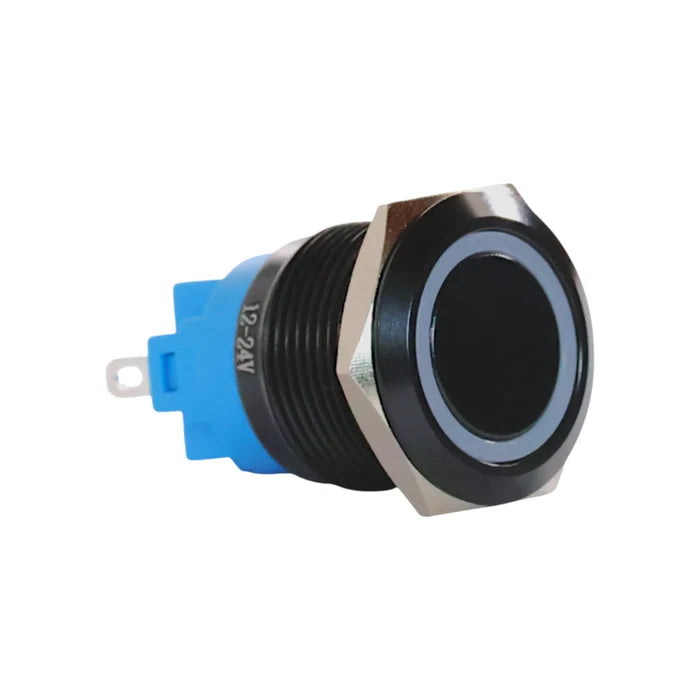

22mm LED White Push Button Switch - Black Anodised Finish - 12-24V

📝 22mm LED White Push Button Switch – Anodised Black Finish – 12–24v

This 22mm push button switch is designed for clean, reliable control across touring and off-grid builds where a larger switch face is preferred. Featuring a white LED halo ring, it provides clear, neutral visual feedback with a modern, low-glare appearance ideal for control panels in vans, 4WDs, marine setups, and off-grid systems.

Built with an anodised black finish and engineered for 12v and 24v DC systems, this switch is available in latching & momentary operation, making it ideal for circuits that require a maintained on/off state.

⭐ Essential Benefits

• White LED halo ring – clear, easy-to-read visual feedback when active.
• Anodised black finish – modern, low-glare professional appearance.
• Two switch variants – choose momentary or latching to suit your setup.
• Larger 22mm size – easier to see and operate on busy control panels.
• IP65 front rating – dust and splash resistant for rugged environments.

⚙️ Functionality

This push button switch is designed to give intuitive control depending on your application:

• Momentary operation – press and hold to activate, release to stop. Ideal for lowering roofs, deflating airbags, and actuator control.
• Latching operation – press once to turn on, press again to turn off. Suited to motorised beds and toggled systems.

The switch mounts into a standard 22mm panel cutout and connects via 5-pin spade terminals, allowing straightforward integration into switch panels and control hubs.

🔌 Compatibility

• 12v and 24v DC systems – suitable for a wide range of vehicle and marine installs.
• Common applications – lighting circuits, pumps, fans, accessories, relays, and control circuits.
• Flexible wiring – suitable for use with or without relays depending on load.
• System integration – compatible with fuse panels, control hubs, and switchboards.

🧰 Installation Difficulty

🟢 2/5 (Easy)
Requires a 22mm drill bit and standard automotive spade connectors.

🔍 Features

• White LED halo ring illumination – clean, neutral status indication.
• Anodised black face – stealth-style finish for modern builds.
• Aluminium body construction – strong and lightweight.
• IP65 front-face protection – suitable for dusty and splash-prone areas.
• 5-pin spade terminals – supports NO / NC and LED wiring.

LED Wiring Options
• Always lit – connect LED positive to constant power and negative to ground.
• Operational illumination – connect LED positive to switch output so it lights only when active.

📊 Specifications

📦 What’s Included

• 1 × 22mm LED push button switch.
• 1 × clip-on quick connect wiring loom.
• Mounting nut and O-ring.

🙌 Why Choose This Product?

Whether you’re lowering a roof, dropping a bed, or releasing air suspension, this switch delivers confident control with instant feedback. The tactile response, and halo illumination make it a reliable, professional-grade upgrade for any serious build.
