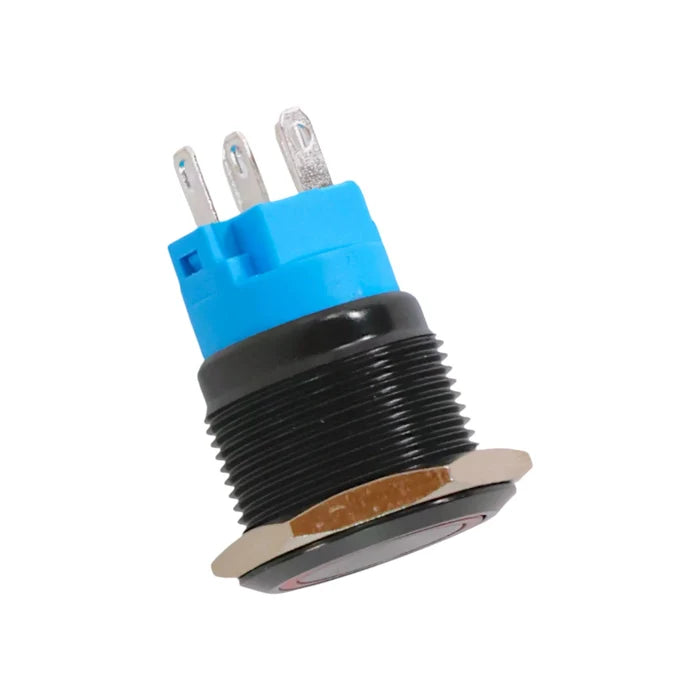

📝 22mm LED Red Push Button Switch – Anodised Black Finish – 12–24v

This 22mm push button switch is designed for clean, reliable control across touring and off-grid builds where a larger switch face is preferred. Featuring a red LED halo ring, it provides clear visual feedback while maintaining a modern, low-glare appearance ideal for control panels in vans, 4WDs, marine setups, and off-grid systems.

Built with an anodised black finish and engineered for 12v and 24v DC systems, this switch is available in latching operation only, making it ideal for circuits that require a maintained on/off state.

⭐ Essential Benefits

• Red LED halo ring – clear, high-visibility feedback when the circuit is active.
• Anodised black finish – modern, low-glare professional appearance.
• Latching operation only – press once to turn on, press again to turn off.
• Larger 22mm size – easier to see and operate on busy control panels.
• IP65 front rating – dust and splash resistant for rugged environments.

⚙️ Functionality

This push button switch operates in latching mode only, meaning:

• Press once to turn on – circuit activates.
• Press again to turn off – circuit deactivates.

The illuminated red LED halo ring provides instant confirmation of switch status, making it easy to identify active circuits at a glance.

The switch mounts into a standard 22mm panel cutout and connects via 5-pin spade terminals, allowing straightforward integration into switch panels and control hubs.

🔌 Compatibility

• 12v and 24v DC systems – suitable for a wide range of vehicle and marine installs.
• Common applications – lighting circuits, pumps, fans, accessories, relays, and control circuits.
• Flexible wiring – suitable for use with or without relays depending on load.
• System integration – compatible with fuse panels, control hubs, and switchboards.

🧰 Installation Difficulty

🟢 2/5 (Easy)
Requires a 22mm drill bit and standard automotive spade connectors.

🔍 Features

• Red LED halo ring illumination – bold, easy-to-read status indication.
• Anodised black face – stealth-style finish for modern builds.
• Aluminium body construction – strong and lightweight.
• IP65 front-face protection – suitable for dusty and splash-prone areas.
• 5-pin spade terminals – supports NO / NC and LED wiring.

LED Wiring Options
• Always lit – connect LED positive to constant power and negative to ground.
• Operational illumination – connect LED positive to switch output so it lights only when active.

📊 Specifications

📦 What’s Included

• 1 × 22mm LED push button switch.
• 1 × clip-on quick connect wiring loom.
• Mounting nut and O-ring.

🙌 Why Choose This Product?

This 22mm push button switch delivers clear, dependable control with high-visibility red status indication and a larger, easy-to-use form factor. With a stealth anodised black finish and latching-only operation, it’s a professional-grade solution for clean, reliable 12v and 24v electrical systems.
